Machine vision system components: a practical guide for manufacturers

What are the core components of a machine vision system?

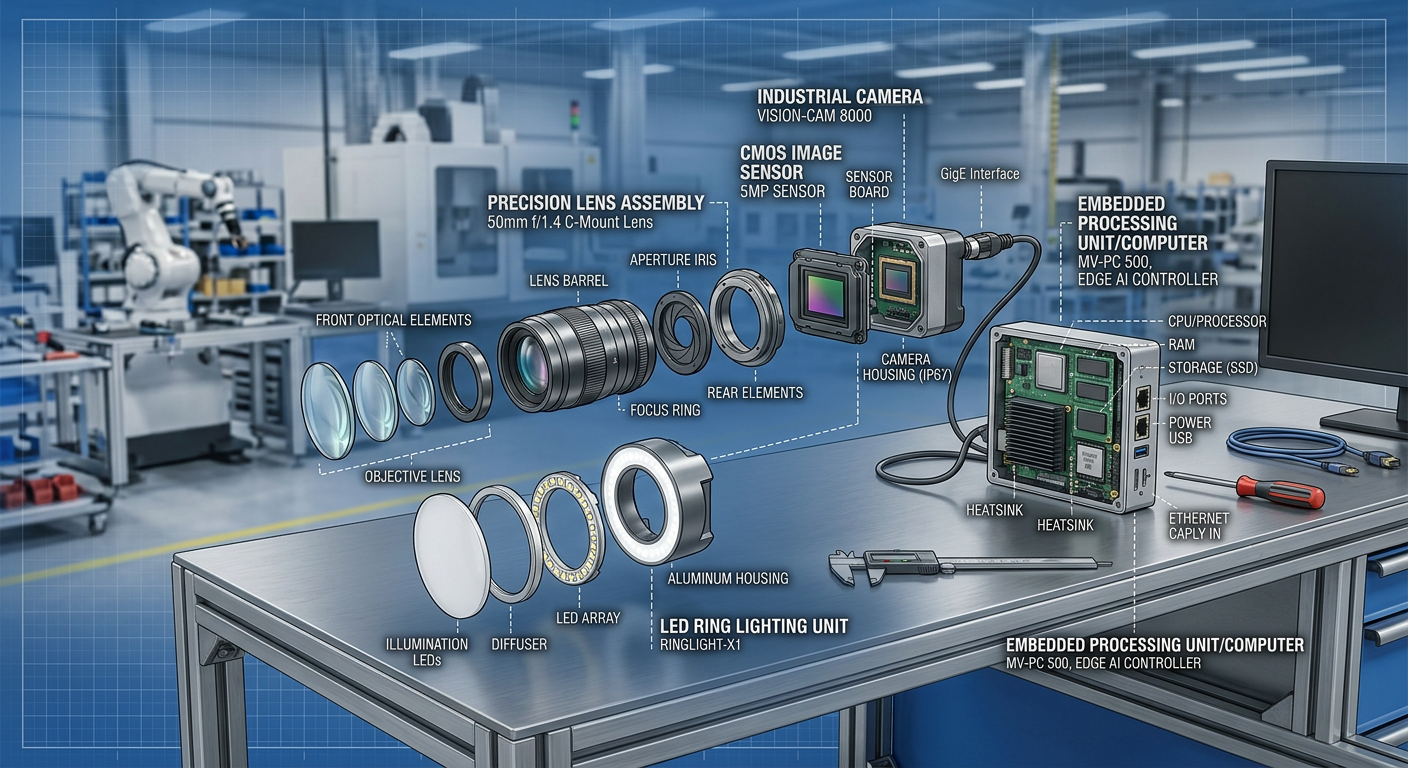

A machine vision system has 5 hardware and software components that work together to capture, analyze, and act on visual information in industrial environments:

1. Camera (image acquisition device)

The camera converts light into digital data. Industrial cameras differ from consumer cameras in ways that matter for production:

Key specifications:

• Resolution: Measured in megapixels, determines the level of detail captured. Higher resolution detects smaller defects but requires more processing power.
• Frame rate: How many images per second the camera captures (measured in fps). Matters most for high-speed production lines.
• Sensor type: CCD (Charge-Coupled Device) sensors offer better image quality, while CMOS (Complementary Metal-Oxide-Semiconductor) sensors are faster and use less power.
• Interface: Common industrial interfaces include GigE Vision, USB3 Vision, and Camera Link--each offering different bandwidth and cable length capabilities.

Manufacturing context: A bottling line running at 300 bottles per minute needs a camera capable of at least 5 fps to capture each bottle. A semiconductor inspection application detecting 10-micron defects needs much higher resolution than a packaging verification system.

2. Lens (optical system)

The lens focuses light from the inspected object onto the camera sensor. Lens selection directly impacts what defects you can detect:

Critical lens parameters:

• Focal length: Determines the field of view and working distance (how far the camera sits from the object).
• Aperture (f-stop): Controls depth of field and light transmission. Smaller f-numbers (f/1.4) provide more light but shallower depth of field.
• Working distance: The distance between lens and object, limited by your production environment.
• Resolution: The lens must match or exceed camera sensor resolution to avoid optical bottlenecks.

Practical consideration: Fixed focal length (prime) lenses offer better optical quality and consistency than zoom lenses, making them standard in industrial applications where the inspection setup stays constant.

3. Lighting system

Lighting is often the most underestimated component--yet it determines what your camera can actually see. Good lighting creates contrast between features you want to detect and background elements.

Common industrial lighting types:

• Backlighting: Object positioned between light and camera, creating a silhouette. Works well for measuring part dimensions and edge detection.
• Front lighting (diffuse): Soft, even illumination from the camera's perspective. Reduces shadows and reveals surface details.
• Low-angle (directional) lighting: Brings out surface texture and topography. Needed for detecting scratches, dents, or embossing.
• Structured lighting: Projects patterns (like laser lines) onto objects to capture 3D information.

Color matters: Different wavelengths reveal different defects. Infrared lighting penetrates some materials. UV lighting makes certain contaminants fluoresce. Red lighting increases contrast on green backgrounds.

Manufacturing insight: Many vision system failures come from inconsistent lighting. Shadows from changing ambient light or reflections from shiny surfaces can make even sophisticated software useless.

4. Image processing unit (the decision-making brain)

This component analyzes captured images and makes decisions. Traditional and AI-based systems diverge here:

Rule-based systems

Traditional machine vision uses deterministic algorithms:

• Pattern matching: Compares captured images to stored templates
• Edge detection: Identifies boundaries using mathematical filters (Sobel, Canny)
• Blob analysis: Measures connected pixel regions to characterize features
• OCR (Optical Character Recognition): Reads text using predefined character libraries

Strengths: Fast, deterministic results, full explainability, no training data required.

Limitations: Struggles with natural variation, requires precise positioning, difficult to adapt to new defect types without reprogramming.

AI-based systems (deep learning)

Modern AI vision systems use neural networks trained on example images:

• Convolutional Neural Networks (CNNs): Learn to recognize patterns from training examples rather than programmed rules
• Transfer learning: Leverage pre-trained models, reducing custom training data requirements
• Anomaly detection: Learn "normal" appearance and flag anything unusual--even defects never seen before

Strengths: Handles natural variation, works with imperfect positioning, adapts to new defect types through retraining, better at complex surface inspection.

Limitations: Requires representative training data, less predictable than rule-based approaches, higher computational requirements.

Practical difference: A rule-based system inspecting welded seams needs explicit programming defining acceptable vs defective welds. An AI system learns from labeled examples of good and bad welds, then applies that learning to new welds--even those with variations not explicitly programmed.

5. Output interface (action layer)

The system must communicate results to downstream equipment:

• Digital I/O: Binary signals (pass/fail) trigger actions like rejecting defective parts or stopping conveyors
• Industrial protocols: Ethernet/IP, PROFINET, Modbus for integration with PLCs and SCADA systems
• Data logging: Results stored in databases for quality management and traceability
• HMI (Human-Machine Interface): Displays for operators showing inspection results, statistics, and alerts

Universal camera compatibility: what it actually means

Universal camera compatibility means AI vision software can run on different camera and processing hardware--not just proprietary integrated systems. This matters because it separates your software investment from hardware replacement cycles.

What works with existing hardware

Modern AI vision platforms can often work with:

• Standard industrial cameras: Any camera with GigE Vision, USB3 Vision, or similar standard interfaces can typically feed images to AI software
• Existing PC infrastructure: Software running on industrial PCs or edge computing devices you already own
• Multiple camera brands: No vendor lock-in to specific camera manufacturers

Real-world example: A food manufacturer with 12 GigE cameras installed for barcode reading could potentially use those same cameras for AI-based packaging defect detection by adding software--avoiding $50,000+ in camera replacement costs.

When hardware upgrades are necessary

Universal camera compatibility doesn't mean any hardware will work. You'll need upgrades when:

Camera limitations:

• Insufficient resolution: Your existing 2MP cameras can't capture the detail needed to detect small defects
• Frame rate bottlenecks: 10 fps cameras can't keep up with production lines requiring 30+ fps inspection
• Incompatible interfaces: Older analog cameras lack digital connectivity
• Missing triggering capabilities: Cameras without external trigger inputs can't synchronize with production equipment

Processing power constraints:

• Edge processing requirements: AI models need GPUs or specialized AI accelerators not present in existing industrial PCs
• Latency requirements: Cloud or centralized processing introduces too much delay for real-time control

Lighting inadequacy: Existing lighting doesn't provide the contrast or illumination needed for reliable detection--regardless of software sophistication.

Decision framework: when to upgrade vs use existing hardware

Assessment questions:

1. Image quality check Capture sample images with existing cameras of the defects/features you need to detect. Can you clearly see the relevant details? If a human inspector viewing those images would struggle, software will too.

2. Speed calculation Maximum inspection time = (60 seconds / production rate per minute) x 0.7 (safety margin)

Example: 200 parts/minute gives you 210ms maximum inspection time. Does your camera frame rate and processing time fit within this constraint?

3. Integration compatibility Do existing cameras support standard industrial interfaces (GigE Vision, USB3 Vision)? Can they be triggered externally? Modern AI software typically requires digital cameras with standard protocols.

4. Processing power audit AI models vary in computational requirements. Lightweight models run on industrial PCs or edge devices. Complex models need dedicated GPU hardware. Request actual inference time benchmarks from vendors on your specific hardware.

Decision matrix:

The often-overlooked rule

Test lighting changes before assuming camera inadequacy. An $800 lighting upgrade often solves what looks like a camera problem--saving $15,000 in unnecessary camera replacements.

Questions to ask vendors when evaluating machine vision solutions

Technical compatibility

1. "What are the minimum camera specifications required for our application?" Get specific numbers: resolution, frame rate, interface type. Ask if your existing cameras meet these requirements.

2. "Can you run your system on our existing camera hardware?" Request a proof-of-concept using actual images from your cameras and production environment.

3. "What processing hardware does your system require?" Understand if you need new industrial PCs, edge AI devices, or GPU servers. Ask about inference time (processing speed per image).

4. "How does your system integrate with our existing equipment?" Confirm compatibility with your PLCs, SCADA systems, and production control infrastructure.

AI-specific questions

5. "Is this rule-based or AI-based, and why is that the right approach for our application?" Rule-based systems work well for dimensional measurement and barcode reading. AI systems handle complex surface inspection and natural variation better.

6. "How much training data do you need, and do you provide it?" Some vendors supply pre-trained models. Others require you to provide hundreds or thousands of labeled images from your production line.

7. "Can we retrain or update the models ourselves?" Understanding ongoing maintenance requirements prevents future vendor dependencies.

8. "How do you handle false positives and false negatives?" Ask about performance metrics: detection rate, false alarm rate, and tuning capabilities.

Practical deployment

9. "What's the deployment timeline from purchase to production?" Include integration, training (if AI-based), and operator training time.

10. "Who handles ongoing support, and what happens when our products change?" Product variations may require model updates. Clarify if this is your responsibility or the vendor's, and associated costs.

11. "What happens if the system fails during production?" Understand fallback modes, diagnostic tools, and response time commitments.

12. "Can you provide references from similar applications?" Speaking with manufacturers in similar industries with comparable inspection challenges provides realistic expectations.

Cost transparency

13. "What's the total cost of ownership beyond initial purchase?" Include software licenses, support contracts, training data generation, and expected upgrade cycles.

14. "Are there per-camera or per-line licensing costs?" Some systems charge per deployment location, affecting scalability costs.

Summary: building your machine vision knowledge base

Understanding machine vision system components helps with purchasing decisions. The 5 core components (camera, lens, lighting, processing unit, output interface) must match your application requirements--but "matching" doesn't always mean buying new hardware.

Key takeaways for procurement:

• Universal camera compatibility lets you use standard industrial cameras from multiple vendors, reducing vendor lock-in and potentially working with existing equipment
• The rule-based vs AI decision depends on your application: predictable, well-defined tasks suit traditional vision; complex surface inspection and variation handling favor AI approaches
• Lighting often matters more than camera resolution for image quality; upgrade lighting before assuming camera inadequacy
• Use the decision framework to systematically evaluate existing hardware capabilities against your inspection requirements
• Ask vendors specific technical questions about compatibility, training requirements, and total cost of ownership before committing

As manufacturers increasingly adopt vision systems for quality control, understanding these fundamentals helps you cut through vendor marketing, avoid unnecessary hardware purchases, and deploy systems that actually solve your production challenges.
